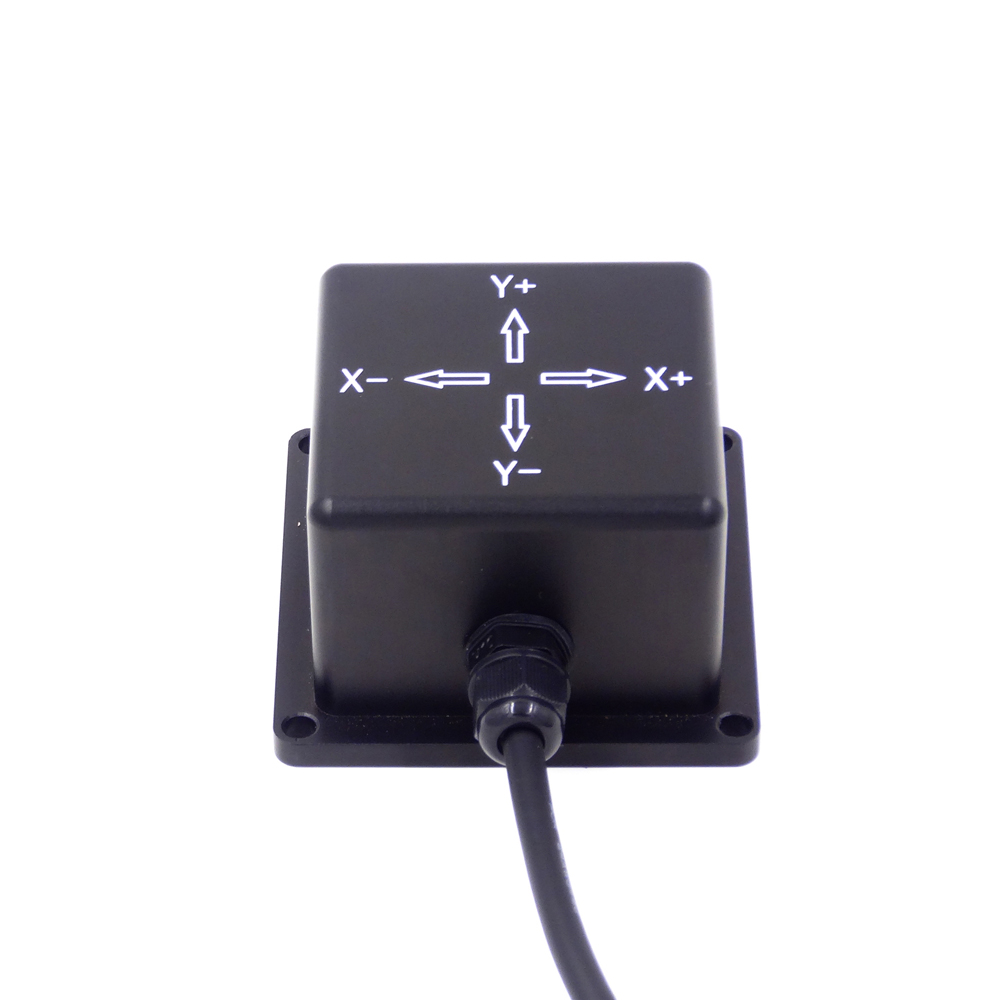

    High accuracy analog current inclinometer for railway tracks monitoring
    Product Model : ZCT205DL-I1
    Measuring Range : ±5 °
    Output : Current(0~20mA)
    Power: Voltage(12~24V)
    Measuring Axis : Dual Axis
    Accuracy : 0.01°-0.09°
    Resolution : 0.005°
    Application : Geo/Structural Monitoring
    IP Degree : IP67
    Temperature : -40℃ ~ +85℃
    GET A PRICE
    Description:

    ZCT205DL-I1 is researched and produced by Shanghai Zhichuan, it is a high accuracy and high stability current type two-axis inclinometer. The measuring range is ±5 degrees,output standard 4~20mA analog current. It has anti-jamming characteristic, adapt to long-distance signal transmission.



    Features:

    Standard three wire 4-20mA current output

    High accuracy;

    High performance-price ratio

    Protection level: IP68



    Application:



    Engineering mechanism

    Anglemeasuring, level adjust, zero adjust

    Sercuity control, monitoring, alarm

    Machine arm, dam, construction bridge angle measuring

    Aim control, bending control



    Original position control, tilt gesture recorder





    Technical Parameters:

    Technical datas:

    Item Parameter Unit Remark
    Measuring range ±5° degree Two-axis
    Resolution 0.005 degree
    Accuracy 0.05 degree @25±4℃
    Sensitivity 1.6 mA/degree
    Current output accuracy 0.08 mA @25±4℃
    non-linearity ±0.5 %FS @25±4℃
    Zero temperature drift 0.01 degree @-40℃~+85℃
    Operating voltage 12~24 V @DC
    Static current <50 mA
    Max load resistance 500 Ω @Vcc=24V
    Zero output current 12 mA
    Max output current <25 mA
    Operating temperature -40 ~  +85
    Store temperature -45 ~  125
    Case size 72*72*45 mm
    Output wire length ≥1 m



    Tilt angle and output current (theory value) relevant relationship diagram:

    Angle Theory output current Angle Theory output current Angle Theory output current
    -5 20.000 -1 13.600 3 7.200
    -4.5 19.200 -0.5 12.800 3.5 6.400
    -4 18.400 0 12.000 4 5.600
    -3.5 17.600 0.5 11.200 4.5 4.800
    -3 16.800 1 10.400 5 4.000
    -2.5 16.000 1.5 9.600
    -2 15.200 2 8.800
    -1.5 14.400 2.5 8.000

    Connection definition:

    Red : Power +                                  Black:Power-

    Yellow:X-axis current output                     Blue:Y-axis current output

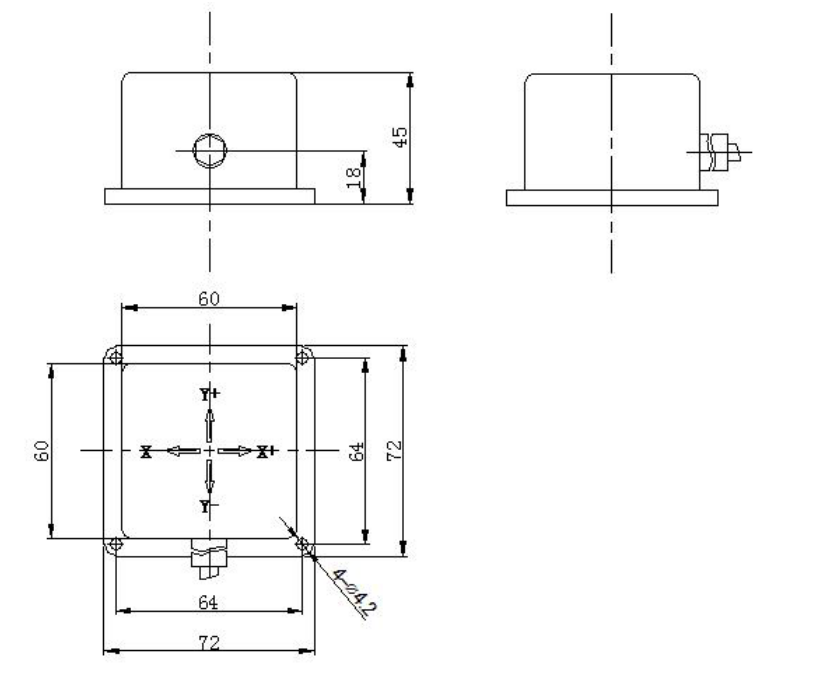

    Installation size:
