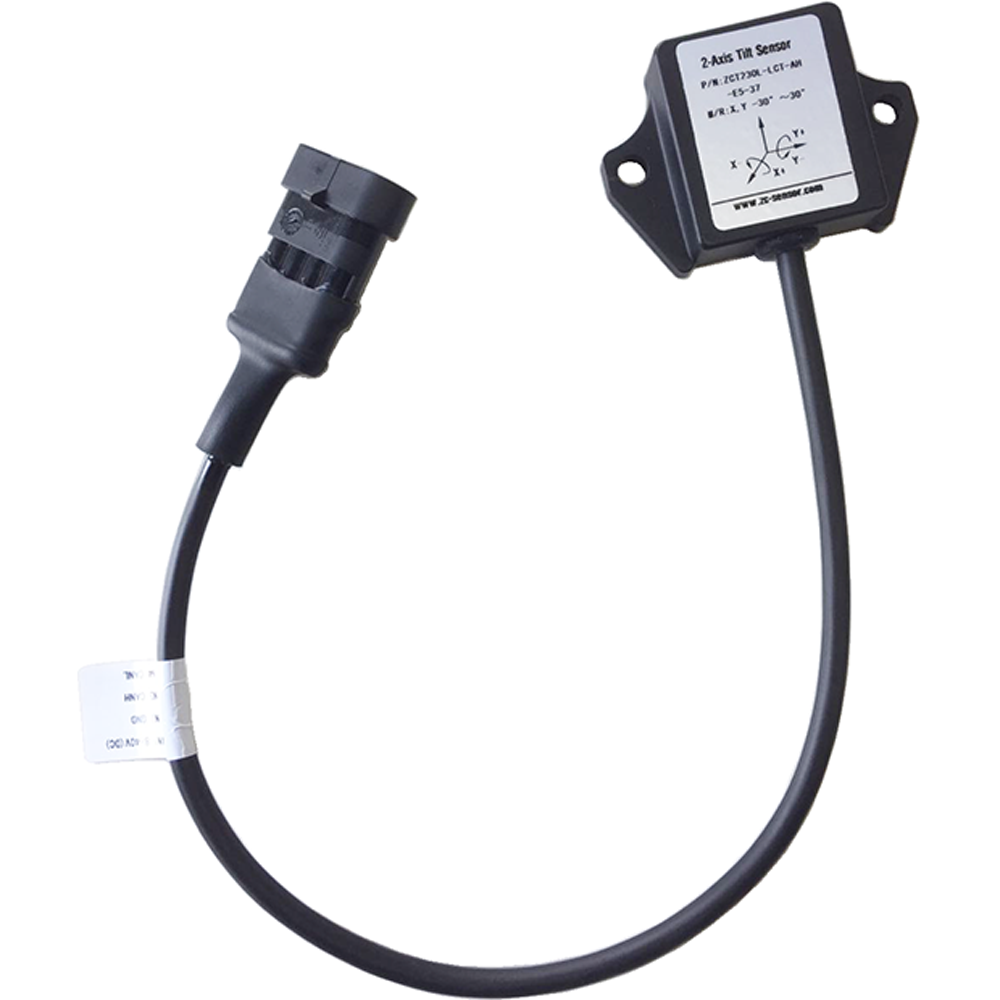

    Dual axis CAN output high precison tilt sensor for machinery
    Product Model : ZCT230L-SCT-AH-E5-37
    Measuring Range : ±30 °
    Output : CAN
    Power: Voltage(8~30V)
    Measuring Axis : Dual Axis
    Accuracy : 0.01°-0.09°
    Resolution : 0.01°
    Application : Machinery
    IP Degree : IP67
    Temperature : -40℃ ~ +85℃
    Alarm Angle: X-axis Y-axis Custom
    GET A PRICE
    Description:

    ZCT230L-SCT-AH-E5-37 is a two-axis tilt sensor R&D and manufactured by Shanghai zhichuan electronic technology CO., LTD,the max measure range ±30°,CAN output. It can be widely used in the field of engineering machinery.

    Product Features

    All use industrial components\Stable performance\Reliable;

    Superior impact and vibration resistance;

    With reverse polarity protection function\use the aluminum alloy housing

    Product Applications

    • Construction Machinery;
    • Construction vehicle;
    • Mining machinery;
    • Security control, monitoring, Alarm;

    Technical Data Sheet

    1.working parameter

    Parameter Condition Min Typ Max Unit
    Power Supply 8 12 40 V(DC)
    Quiescent current Vcc=12V 24 29 34 mA
    Work temperature

    range

    -40 85
    Storage

    Temperature

    Range

    -40 85

    2. Performance index(Unless otherwise noted, all of the following are for room temperature (25 ℃) under the environment of typical values.)

    Item Test Condition Min Typ Max Unit
    Test Range Dual Axis -30 +30 °
    Resolution(1 25℃ 0.01 °
    repeatability(2 25℃ 0.25 °
    accuracy(3 Measure range<

    <±8°

    ±0.25 °
    Measure range<

    <±15°

    ±0.5 °
    Measure range<

    <±30°

    ±0.8 °
    Output frequency 1 25 100 HZ
    CAN Baud rate 250 kbps
    Temperature effect on zero -40—+85℃ 0.008 0.01 °/℃
    Zero-point with housing 0.5 °

    Note 1:Resolution refers to the minimum input Angle that a device can resolve,at the condition of default filter level=15 ;

    Note 2:At the condition of default filter level=15;

    Note 3:At the condition of default filter level=15;

    Wiring definition

    1 2 3 4
    White Yellow Green Brown
    VCC GND CAN-H CAN-L

    Product size and measurement direction: Unit:mm

    1. Product size

    2. Measurement direction

    Ordering instruction:Default cable length

    (Includes connectors and retainers):400±50mm

    This information is for reference only,Shanghai zhichuan electronic technology co., LTD. Has the right to revise the data without notice.
