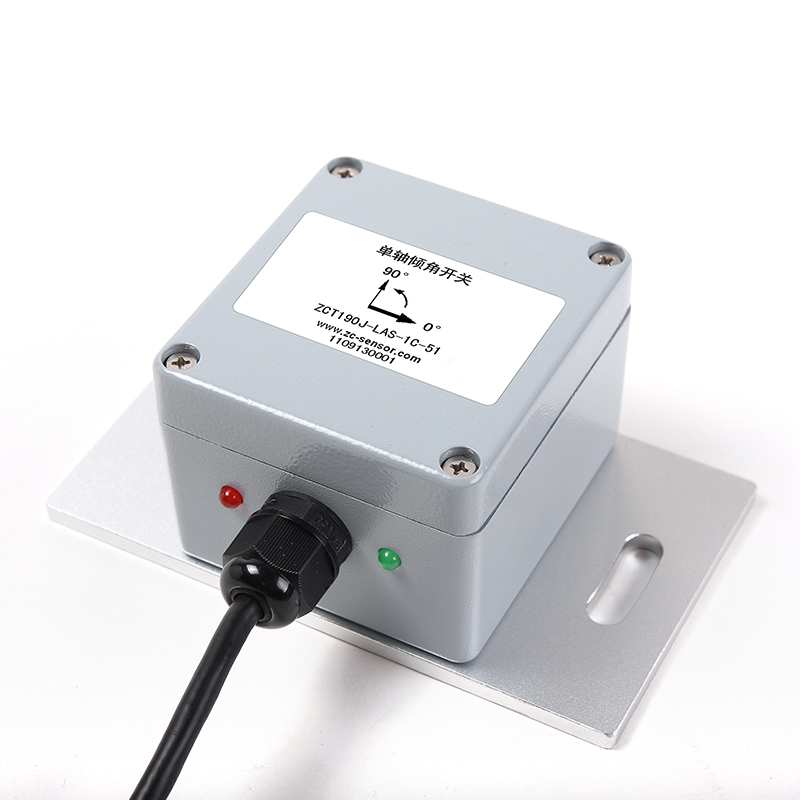

    Single-axis tilt switch with angle alarm
    Product Model : ZCT190J-LAS-1C-51
    Measuring Range : ±90 °
    Output : Switch
    Power: Voltage(12~36V)
    Measuring Axis : Single Axis
    Accuracy : 0.1 °-0.5°
    Resolution : 0.1 °
    Temperature : -20℃ ~ +60℃
    Alarm Angle: Single axis multiple alarm angle
    GET A PRICE
    Description:

    ZCT190J-LAS-1C-51 is a single-axis tilt switch developed and produced by Shanghai Zhichuan Electronic Technology Co., Ltd. It measures the angle range from 0 to 90 degrees and output is RS232 serial communication port. The switch operating point can be set by the user’s command. Can be widely used in the field of construction machinery.

    Features:

    All industrial devices are used, with stable and reliable performance
    Impact resistance greater than 10000g
    Allows a wide range of power supply, with reverse power protection
    Adopt cast aluminum shell, protection grade IP65
    Products passed CE certification

    Applications:

    Crane
    Hoist
    Aerial vehicle and lift
    Security control, monitoring, alarm



    Technical Parameters:

    1)Technical parameters(Typical values is under room temperature 25℃, unless special marked)

    Item Condition Min. Typical Max. Unit
    Supply Voltage 8 12 36 V(DC)
    Static working current(1 Horizontal non-load Vcc=12V 25 50 mA
    alarm working current(1 VCC=12V 60 mA
    Alarm angle Relay action point 0 70 90 °
    Working temp. range -40 +85
    Measure range Single axis 0 90 °
    Resolution(1 0.1 °
    Accuracy(2 Room temp( 25℃±4℃) ±0.5 °
    Absolute zero point deviation -20~+60℃ 1.5 °
    Respond time(3 1 s
    Housing size Without plate 80*75*58 mm
    Cable length 1.5 m

    Note 1: The static working current refers to the working current of the device when the power supply voltage is 12V and there is no alarm signal output.
    Note 2: Accuracy refers to the root-mean-square error of the actual real angle and the sensor measurement angle measured multiple times (≥16 times).
    Note 3: When the input angle reaches the set angle and the device outputs an alarm signal, the time required is the response time.

    2)The operation process and working status of the tilt switch are as follows:
    1) When the power is turned on, when the measurement axis tilt angle is not in the alarm angle area, the relay is de-energized, the alarm signal is disconnected, and the green light is on. When the measurement axis tilt angle is in the alarm angle area, the relay is energized and the alarm signal is conducted to the ground wire, and the red light is on at this time.
    2) When the measuring axis tilt angle enters the alarm angle area, the red light is on, the relay is energized, the alarm signal is turned on to the ground wire, and the green light is off after one second.
    3) When the measurement axis tilt angle exits the alarm angle area, the red light is off, the relay power failure alarm signal is turned off, and the green light is on after one second.

    Note: The sensor should be installed vertically for measurement, such as horizontal placement, the red light and green light are not on, the sensor is in an abnormal working state.

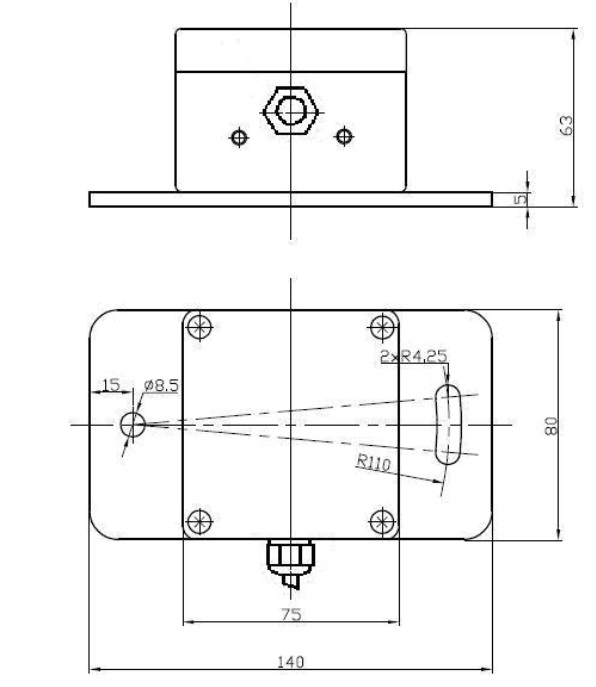

    3) Housing Size
