    NB-IoT tiltmeter for IoT
    Product Model : ZCT330E-SWP-N-YK
    Measuring Range : ±15 ° ( ±30 °)
    Output : NB-IOT
    Power: Voltage(5V)
    Measuring Axis : Dual Axis
    Accuracy : 0.1 °-0.5°
    Resolution : 0.1°
    Application : Internet of Things
    IP Degree : IP67
    Temperature : -40℃ ~ +85℃
    GET A PRICE
    Description:

    ZCT330E-SWP-N-YK is a wireless MEMS tilt sensor working with the NB-IoT standard. It is with a maximum measurement range of two-axis (+-30 degrees). It can be widely used in various structural health monitoring, IoT scenarios, telecom, thermal, water, power and other industries.

    Features

    All industrial devices are stable and reliable. Extremely low power consumption.

    Applications

    Safety control, monitoring, alarm, IoT

    Technical parametersroom environment25℃

    1. work parameter:

    Parameter

    Test condition

    Min.

    Typ.

    Max.

    Unit

    Power supply

    3.2

    3.6

    4.2

    V(DC)

    Quiescent current

    Standby

    5

    uA

    Work temp range

    -40

    +85

    Storage temp range(1

    25

    30

    Note1: The annual battery self‐discharge rate is less than 3% if stocked in this temperature for a year. The self‐discharge rate will be higher than this value if beyond this temperature range.

    2. performance parameter room environment25℃

    Parameter

    Test condition

    Min.

    Typ.

    Max.

    Unit

    Total range

    Dual-axis

    -30

    -30

    deg

    Resolution (1

    25℃

    0.1

    deg

    Accuracy

    ±0.5

    deg

    Heart rate

    1

    times/day

    Battery work time (2

    Standby

    10

    year

    Zero temp drift

    -40—+85℃

    0.02

    0.04

    °/℃

    Zero point

        25℃

    ±1

    deg

    Note 1: Resolution refers to the minimum variance that can be detected by the sensor while working in its valid range.

    Note 2: In the relative measurement mode, no alarm, heartbeat rate 1 time / day and ambient temperature 25 ° C.

    Mount step:

           a. Install the SIM card;

    b. Install the sensor horizontally on the object to be measured, remove the magnet on the side of the sensor to power on the sensor;

    c. After 40 seconds, you can see a frame of heartbeat data on the default server platform, and the installation is successful.

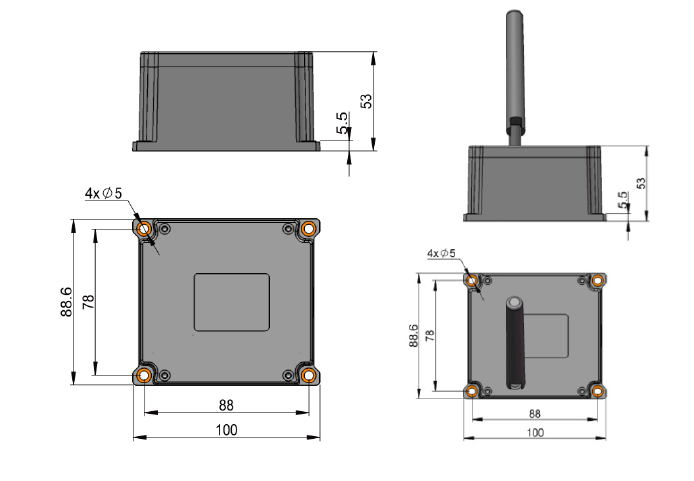

    Size, measuring direction and mount diagram:


    Remark: No SIM card is included by default.



    Measurement Directions


    Order Information:

          ZCT330E‐SWP‐N‐YK     Internal antenna

    ZCT330E1‐SWP‐N‐YK    External antenna


    Application:
